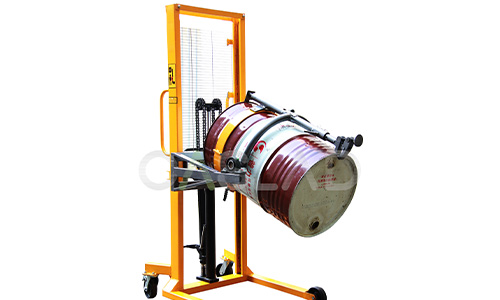

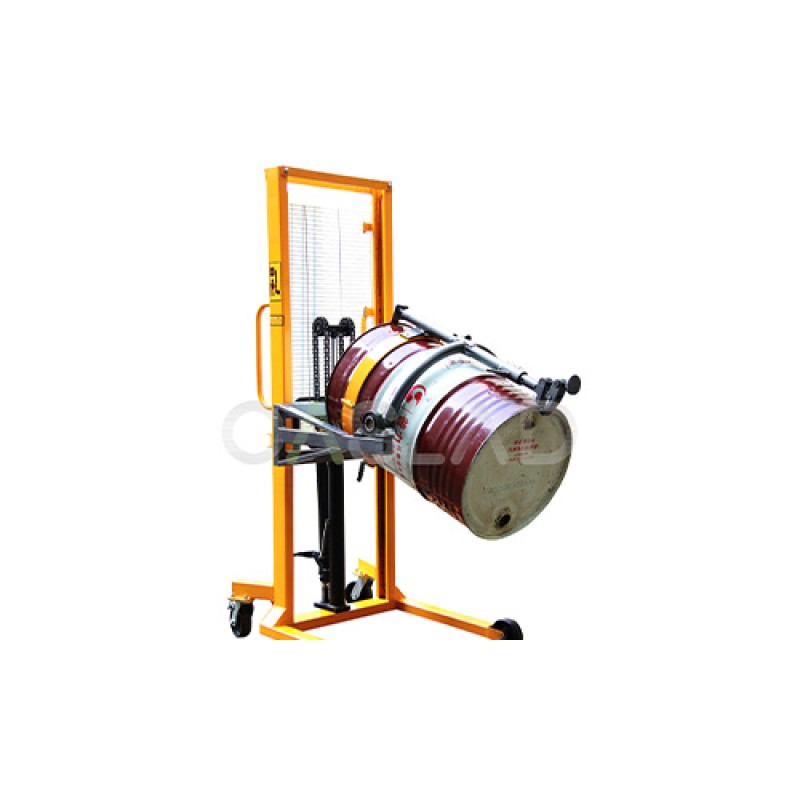

Drum Lift Rotator
Brand:
Product Code:
899816
Available in 1.4m or 3m lift height
Available in 1.4m or 3m lift height
1.4m LIFT HEIGHT
| Capacity | 350Kg |
| Lift Height (Bteween the bottom of the arm and the floor) | 50mm - 1400mm |
| Diameter of Drum Clamp | 600mm |
| Overall Height | 2020mm |
| Overall Length | 1200mm |
| Overall Width | 920mm |
| Turning Radius | 1200mm |
| Lift Speed | 20 seconds |
| Lowering Speed | Controllable |
| Reducer Reduction Rate | 1:60mm |
3m LIFT HEIGHT
| Capacity | 350Kg |
| Lift Height (Bteween the bottom of the arm and the floor) | 50mm - 2800mm |
| Diameter of Drum Clamp | 600mm |
| Overall Height | 2020mm |
| Overall Length | 1200mm |
| Overall Width | 920mm |
| Turning Radius | 1200mm |
| Lift Speed | 20 seconds |
| Lowering Speed | Controllable |
| Reducer Reduction Rate | 1:60mm |
